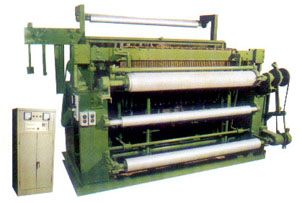

| AHD6T Type Electric Welding Net Machine30 |
 |
| Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity.Used for welding net of big width. Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2". |
| Size of mesh (mm) |
6.35-12.7 (1/4"-1/2") |
| Width (mm) |
1219.2-1828.8(48"-60") |
| Diameter of wire (mm) |
dia.0.74-dia.1.07 (BWG22-BWG19) |
| Biggest rolled net size (m) |
120m (400') |
| Welding speed (mesh/minute) |
48 (radia) |
| Power |
380/220V
50-60HZ
50KWA x 6 |
| Outside size measurement (mm) |
3050 x 1900 x 1750 | |
| AHK4 Type Electric Welding Net Machine |
 |
| Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh 1/2" to 4". |
| Size of mesh (mm) |
12.7-101.6 (1/2"-4") |
| Width (mm) |
914.4-1219.2(12"-48") |
| Diameter of wire (mm) |
dia.0.63-dia.2(BWG25-BWG19) |
| Biggest rolled net size (m) |
120m (400') |
| Welding speed (mesh/minute) |
65 (radia) |
| Power |
380/220V
50-60HZ
50KWA x 4 |
| Outside size measurement (mm) |
2600 x 1700 x 1350 | |
| AHK6T Type Electric Welding Net Machine |
 |
| Peculiarity: Box-style support, high stability, lower noise, E-machine in one, straighten and send wire automatically, used for welded wire mesh of big width and wire diameter. |
| Size of mesh (mm) |
25.4-152.4 (1"-6") |
| Width (mm) |
1219.2 1524 1828.8(48" 60" 72") |
| Diameter of wire (mm) |
dia.1.07-dia.2 (BWG19-BWG14) |
| Biggest rolled net size (m) |
91.4m (300') |
| Welding speed (mesh/minute) |
45 (radia) |
| Power |
380/220V
50-60HZ
50KWA x 6 |
| Outside size measurement (mm) |
3350 x 1800 x 1400 | |
