Five-Heddle Industrial Wire Mesh for Filtration Systems

Five-Heddle Weave Wire Mesh is a precision-woven industrial filtration medium that adopts a distinctive pattern in which each warp wire alternately passes over and under five weft wires. This weave creates a smooth, flat surface and offers excellent mechanical strength, making it effective for demanding filtration processes. The mesh is typically manufactured using stainless steel grades such as SS316L and SS304 to ensure performance stability and resistance to corrosion.

The five-heddle weave delivers a higher open area and lower pressure drop while maintaining accurate filtration levels, allowing efficient processing of high-flow and high-viscosity liquids or gases. Its smooth surface enhances cleaning efficiency, reduces wear during operation, and minimizes material buildup. Due to this design, the mesh offers superior resistance to clogging and extends the operational lifespan of filtration systems. It is widely used in polymer melt filtration, hydraulic equipment, centrifuges, and gas separation units. Strong structural integrity, stable pore geometry, and long-term durability allow reliable operation in chemical production, food processing, and pharmaceutical industries where consistent filtration performance is required.

Specifications

• Weave Type: Five-Heddle weave
• Material Grades: Stainless Steel SS316L, SS304
• Mesh Count Range: 12 × 64 to 24 × 110
• Wire Diameter Range: 0.15 mm to 0.45 mm
• Surface Structure: Smooth, abrasion-resistant woven surface
• Filtration Properties: High open area and low pressure drop
• Operating Features: Easy cleaning, anti-clogging performance
• Application Fields: Polymer melt filtration, hydraulic systems, centrifuge separators, gas filters
• Industry Use: Chemical, food processing, pharmaceutical manufacturing
• Performance Standard: Designed for continuous operation under international standards

Pictures for examples

Stainless Steel Five-Heddle Wire Mesh Panel For Industrial Filtration

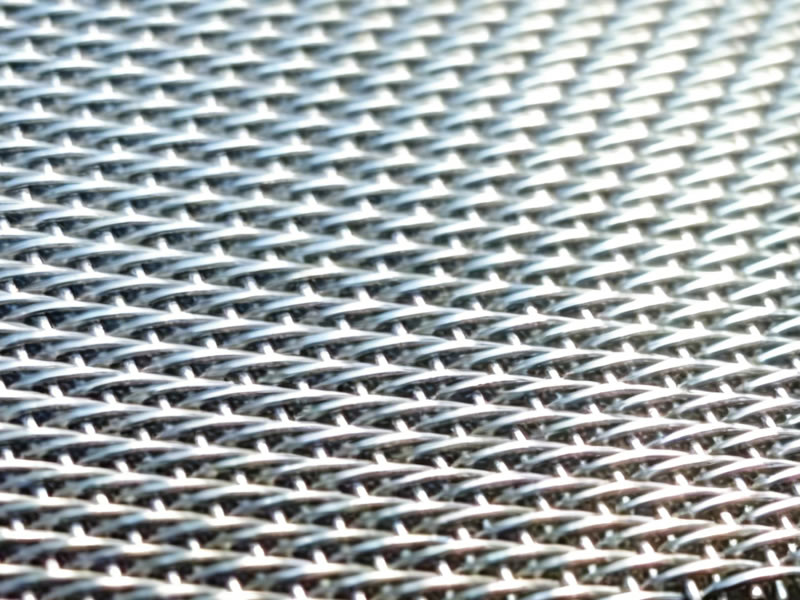

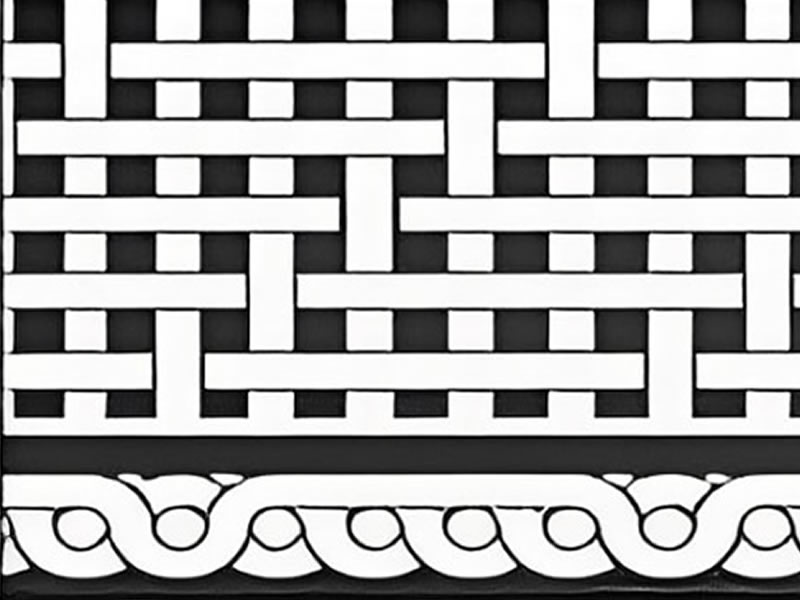

Five-Heddle Weave Wire Mesh Detail View For Filtration Systems
