Stainless Steel Filter Mesh for Liquid Gas Solid Filtration

Woven Filter Wire Mesh is a precision metal filtration material used for industrial separation applications. It is woven from stainless steel grades such as SS304, SS316, and SS316L, offering uniform pore size, corrosion resistance, and stable mechanical strength.

Available weaves include plain weave, twill weave, and Dutch weave, supporting filtration levels from 5 µm to 5000 µm. Standard mesh counts range from 4 × 4 to 500 × 500, and wire diameters from 0.025 mm to 2.0 mm. The mesh is suitable for liquid, gas, and solid filtration in petrochemical, pharmaceutical, food, and water treatment systems.

It provides smooth surface finish, withstands high temperatures, and supports backwashing. Supplied in rolls, sheets, or custom-cut sizes, the mesh meets international standards for industrial filtration.

Specifications

• Material: SS304, SS316, SS316L
• Weave Type: Plain, Twill, Dutch
• Filtration Rating: 5–5000 microns
• Mesh Count: 4 × 4 to 500 × 500
• Wire Diameter: 0.025–2.0 mm
• Forms: Rolls, sheets, cut panels
• Applications: Liquid, gas, solid filtration
• Industries: Petrochemical, pharmaceutical, food, water treatment
• Features: Corrosion-resistant, stable pore size, backwashable
• Standards: International filtration standards

Pictures for examples

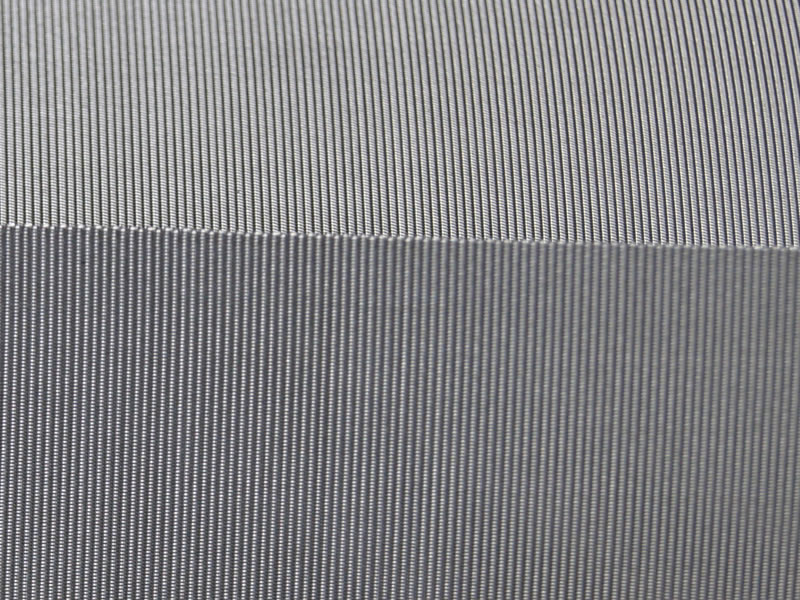

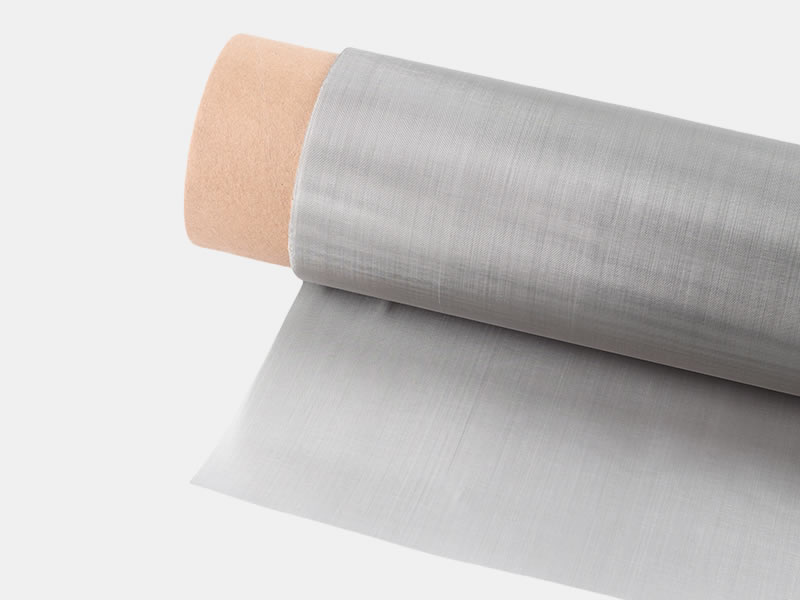

Stainless Steel Woven Filter Mesh

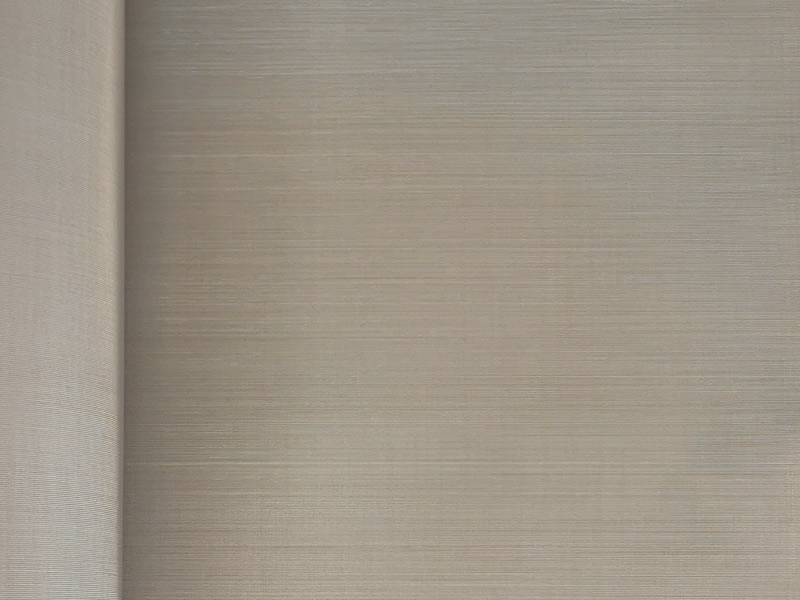

Dutch Weave Filter Wire Mesh

Woven Wire Mesh Filter for Surface Fine Filtration

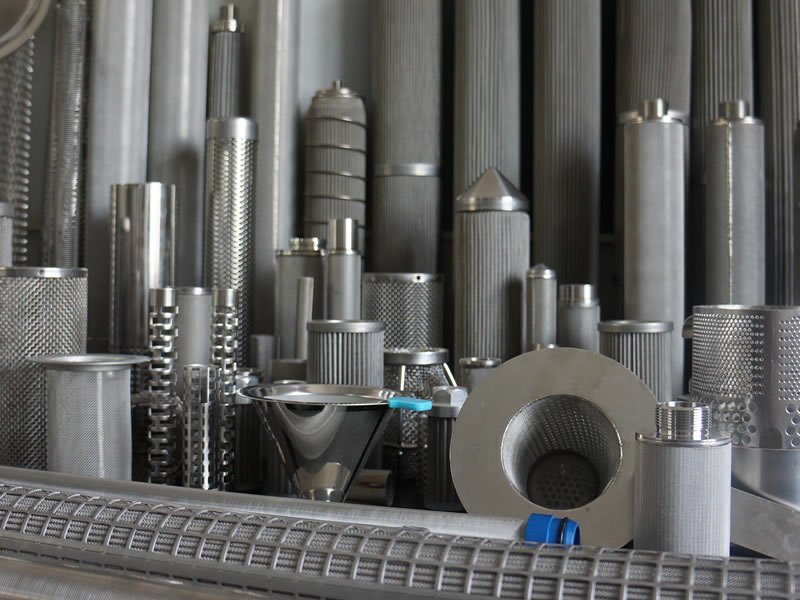

Woven Wire Mesh For Filtration Process
