Steel Fencing
Space-Efficient Padel Court: Ideal for Urban and Commercial Spaces
Common Types
- Classic Standard: Combines glass, metal posts, and netting for cost-effectiveness. Ideal for bulk construction in communities or clubs.
- Panoramic: Features a column-free, full-length tempered glass back wall for unobstructed views. Commonly used in premium venues and tournaments.
- Indoor/Outdoor: Outdoor courts can be equipped with sunshades, while indoor courts maintain consistent temperatures to accommodate various climates and conditions.
Core Features & Advantages
- Space-Efficient: Requires only one-third the area of a traditional tennis court. Ideal for urban rooftops, residential open spaces, and commercial complexes with limited space.
- Low Entry Barrier: The enclosed design minimizes ball retrieval. Primarily a doubles game, known for its strong social appeal and dubbed "the most social racket sport."
- All-Weather Accessibility: The enclosed structure resists wind, with comprehensive lighting that remains unaffected by rain, snow, or glare.
- Unique Gameplay: Combines tennis rules with squash-style "wall-bouncing rallies," adding tactical depth to the game.
Application Scenarios
- Sports clubs, resorts, and community parks
- Athletic facilities in schools and corporate campuses
- Commercial rooftops and urban renewal projects that repurpose vacant lots

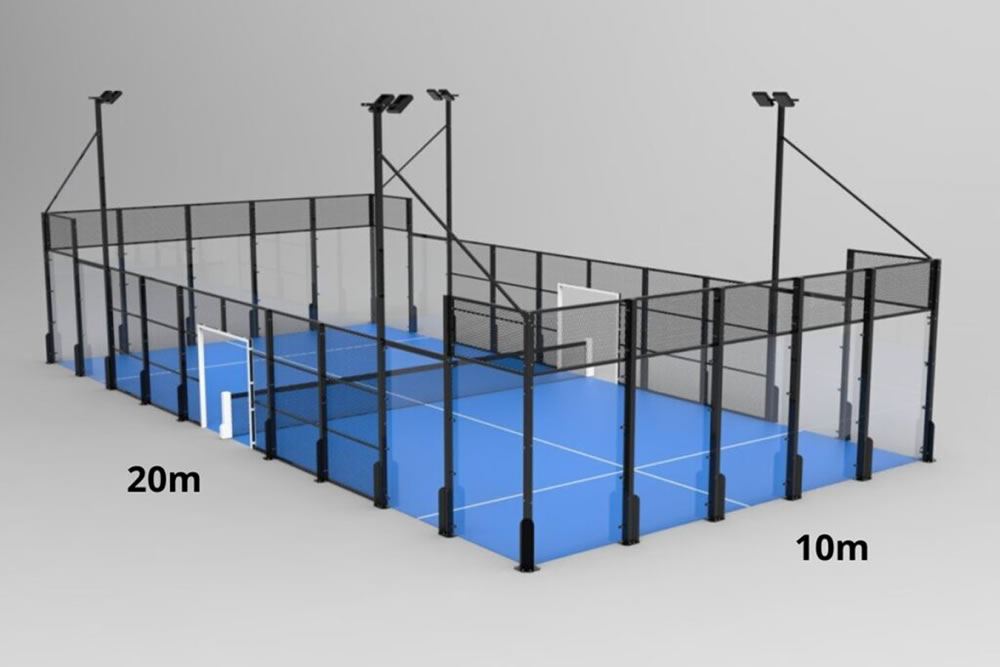

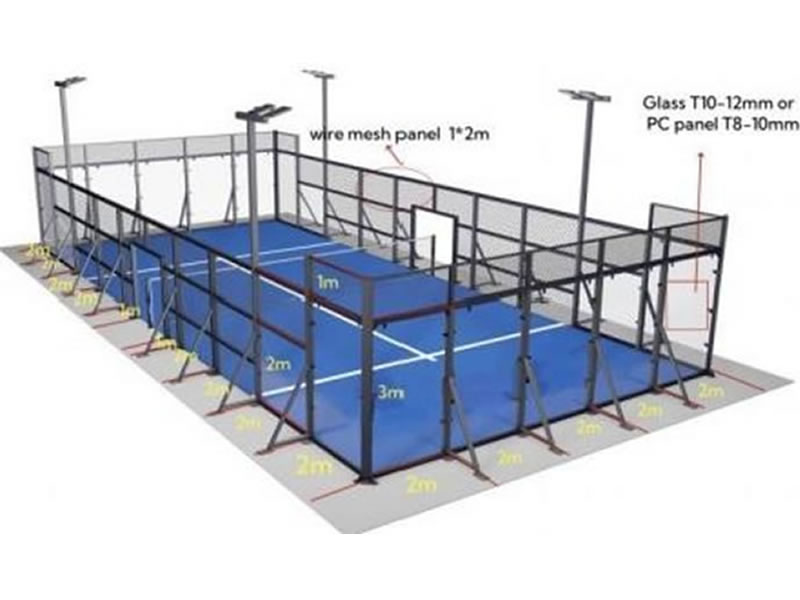

Type 1: Classic 20*10m
Model:VO-C2010-01
Model:VO-C2010-02
Size:20 meters ×10 meters
| Item Category | Specific Name | Specification Parameters |
| Column System | Four-corner Post | Q235 steel, Optional: 150×150×4mm square steel pipe / 100×100×3.0mm fan-shaped steel pipe |
| Other Post | Q235 steel rectangular pipe, Optional: 100×50×3.0mm / 80×40×2.5mm | |
| Supporting Column | Optional: 80×80×3.0mm aluminum alloy square tube / Q235 steel | |
| Beam System | Crossbeam | Rectangular steel tube, Optional: 150×60×2mm / 100×50×2mm |
| Fencing Frame System | Fencing Frame | 50×50×4mm pipe |
| Frame Pipe | Optional: 40×40×1.5mm / 40×20×1.5mm | |
| LED Lighting System | LED Lamps | Quantity: 4 units |
| Single Unit Power | 200W | |
| Input Voltage | AC 110~277V | |
| Light Source | Philips LED chip | |
| Power Supply | Philips matching power supply | |
| Netting Material | Netting | 3mm thick PE woven netting |
| Structural Design | Top Structure | The top 6 sections adopt double-layer design |
| Tempered Glass | Glass Quantity | 18 pieces |
| Glass Thickness | 12mm tempered glass | |
| Artificial Turf | Grass Height | 10mm |
| Needle Density | 46200 needles/m2 | |
| Dtex | 13500 | |
| Material | PP+PE blend | |
| Warranty | 5 years | |
| Color | Customizable | |
| Surface Treatment | Treatment Plan | Optional: 1. Hot-dip galvanizing + Electrostatic spraying; 2. Bottom spray of zinc-rich primer + Surface powder coating |
| Production & Weight | Monthly Production Capacity | 100 sets |
| Single Set Gross Weight | 6000 kilograms | |
| Origin | Hebei, China |
Type2:Single Padel court 20*6m

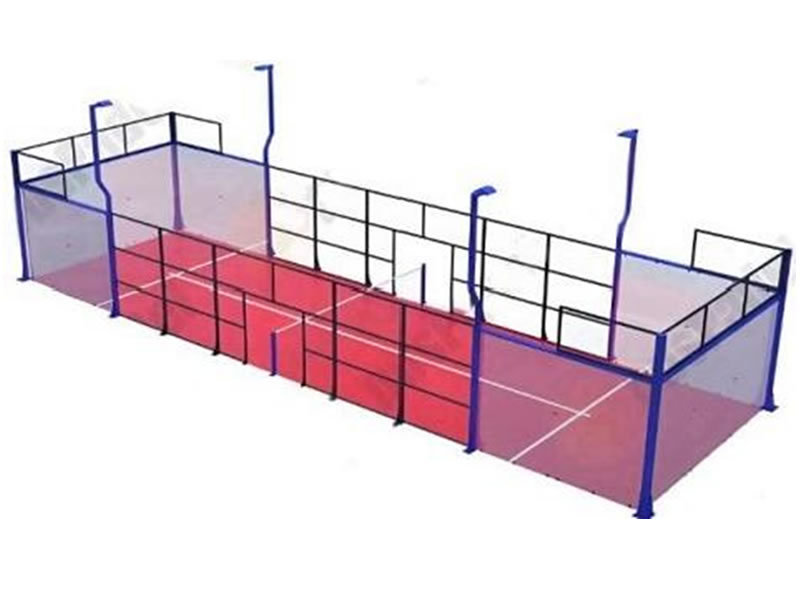

Model:VO-SP2006-01

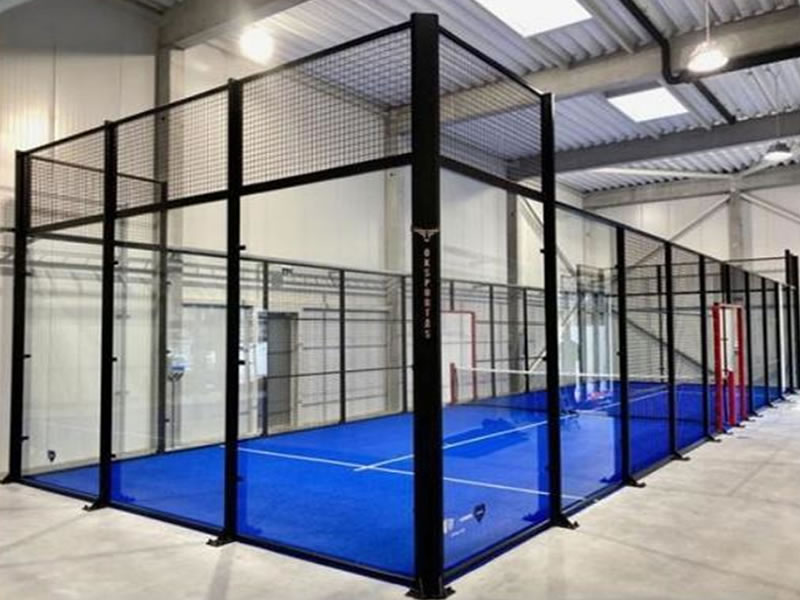

Model:VO-SP2006-02
Size:20 meters×6meters
| Item Category | Specific Name | Specification Parameters |
| Column System | Four-corner Post | Q235 steel, Optional: 150×150×4mm square steel pipe / 100×100×3.0mm fan-shaped steel pipe |
| Other Post | Q235 steel rectangular pipe, Optional: 100×50×3.0mm / 80×40×2.2mm | |
| Supporting Column | Optional: 80×80×3.0mm aluminum alloy square tube / Q235 steel | |
| Beam System | Crossbeam | Rectangular steel tube, Optional: 150×60×2mm / 100×50×2mm |
| Fencing Frame System | Fencing Frame | 50×50×4mm pipe |
| Frame Pipe | Optional: 40×40×1.5mm / 40×20×1.5mm | |
| LED Lighting System | LED Lamps | Quantity: 4 units |
| Single Unit Power | 200W | |
| Input Voltage | AC 110~277V | |
| Light Source | Philips LED chip | |
| Power Supply | Philips matching power supply | |
| Netting Material | Netting | 3mm thick PE woven netting |
| Structural Design | Top Structure | The top 6 sections adopt double-layer design |
| Tempered Glass | Glass Quantity | 18 pieces |
| Glass Thickness | 12mm tempered glass | |
| Artificial Turf | Grass Height | 10mm |
| Needle Density | 46200 needles/㎡ | |
| Dtex | 13500 | |
| Material | PP+PE blend | |
| Warranty | 5 years | |
| Color | Customizable | |
| Surface Treatment | Treatment Plan | Optional: 1. Hot-dip galvanizing + Electrostatic spraying; 2. Bottom spray of zinc-rich primer + Surface powder coating |
| Production & Weight | Monthly Production Capacity | 100 sets |
| Single Set Gross Weight | 6000 kilograms | |
| Origin | Hebei, China |

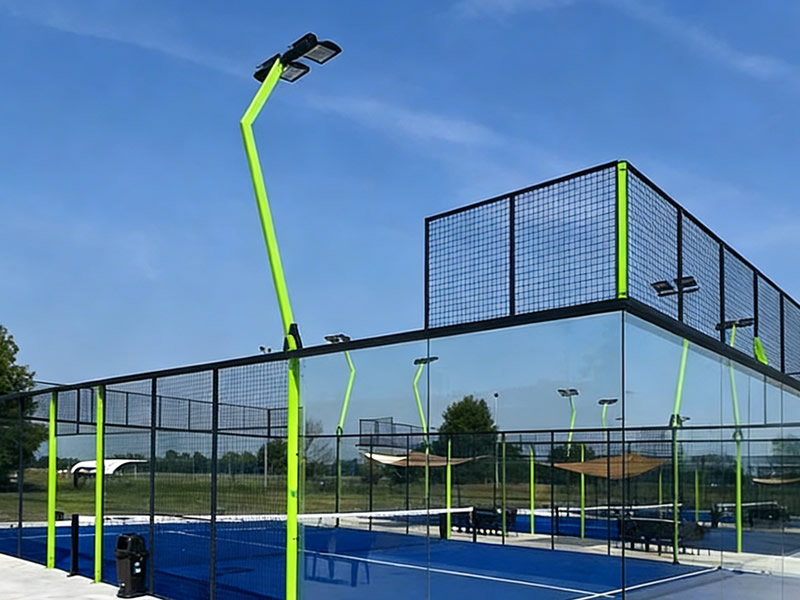

Type 3: Panorama
Model:VO-P2010-01
Model:VO-P2010-02
Size:20 meters×10meters
| Item Category | Specific Name | Specification Parameters |
| Column System | Four-corner Post | Q235 steel, Optional: 150×150×4mm square steel pipe / 100×100×3.0mm fan-shaped steel pipe |
| Other Post | Q235 steel rectangular pipe, Optional: 100×50×3.0mm / 80×40×2.5mm | |
| Supporting Column | Optional: 80×80×3.0mm aluminum alloy square tube / Q235 steel | |
| Beam System | Crossbeam | Rectangular steel tube, Optional: 150×60×2mm / 100×50×2mm |
| Fencing Frame System | Fencing Frame | 50×50×4mm pipe |
| Frame Pipe | Optional: 40×40×1.5mm / 40×20×1.5mm | |
| LED Lighting System | LED Lamps | Quantity: 4 units |
| Single Unit Power | 200W | |
| Input Voltage | AC 110~277V | |
| Light Source | Philips LED chip | |
| Power Supply | Philips matching power supply | |
| Netting Material | Netting | 3mm thick PE woven netting |
| Structural Design | Top Structure | The top 6 sections adopt double-layer design |
| Tempered Glass | Glass Quantity | 18 pieces |
| Glass Thickness | 12mm tempered glass | |
| Artificial Turf | Grass Height | 10mm |
| Needle Density | 46200 needles/㎡ | |
| Dtex | 13500 | |
| Material | PP+PE blend | |
| Warranty | 5 years | |
| Color | Customizable | |
| Surface Treatment | Treatment Plan | Optional: 1. Hot-dip galvanizing + Electrostatic spraying; 2. Bottom spray of zinc-rich primer + Surface powder coating |
| Production & Weight | Monthly Production Capacity | 100 sets |
| Single Set Gross Weight | 5500-9000 kilograms | |
| Origin | Hebei, China |

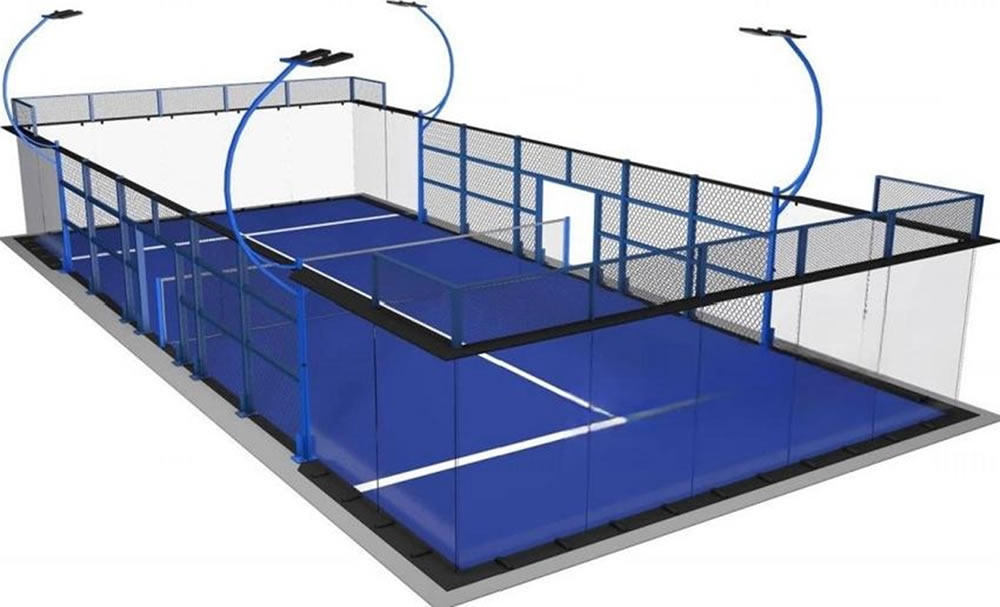

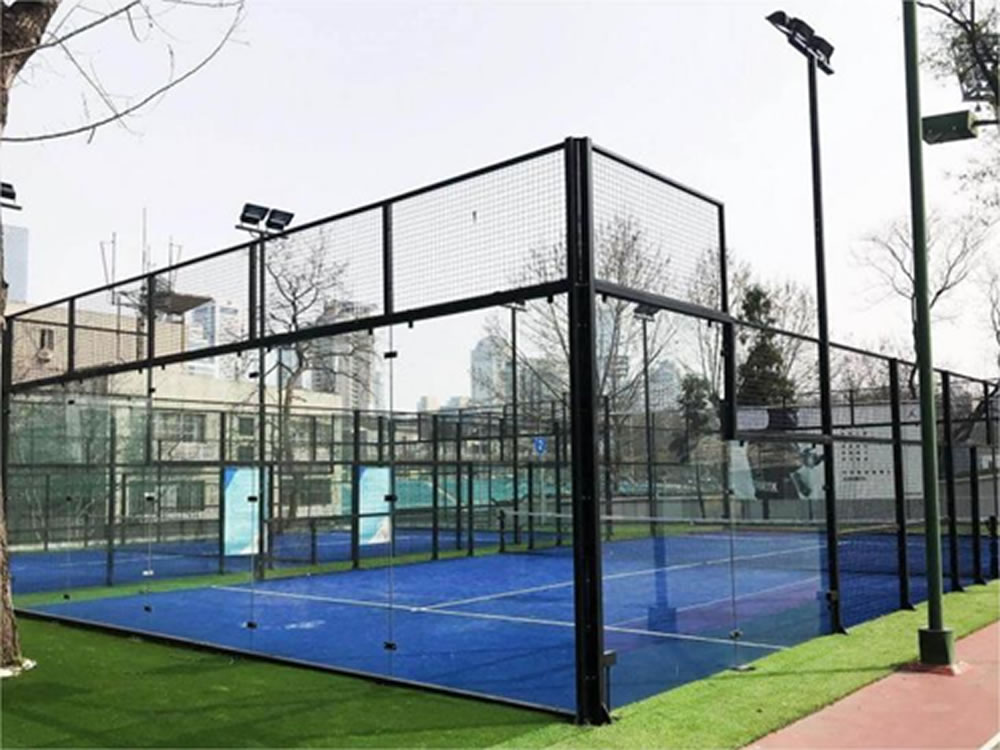

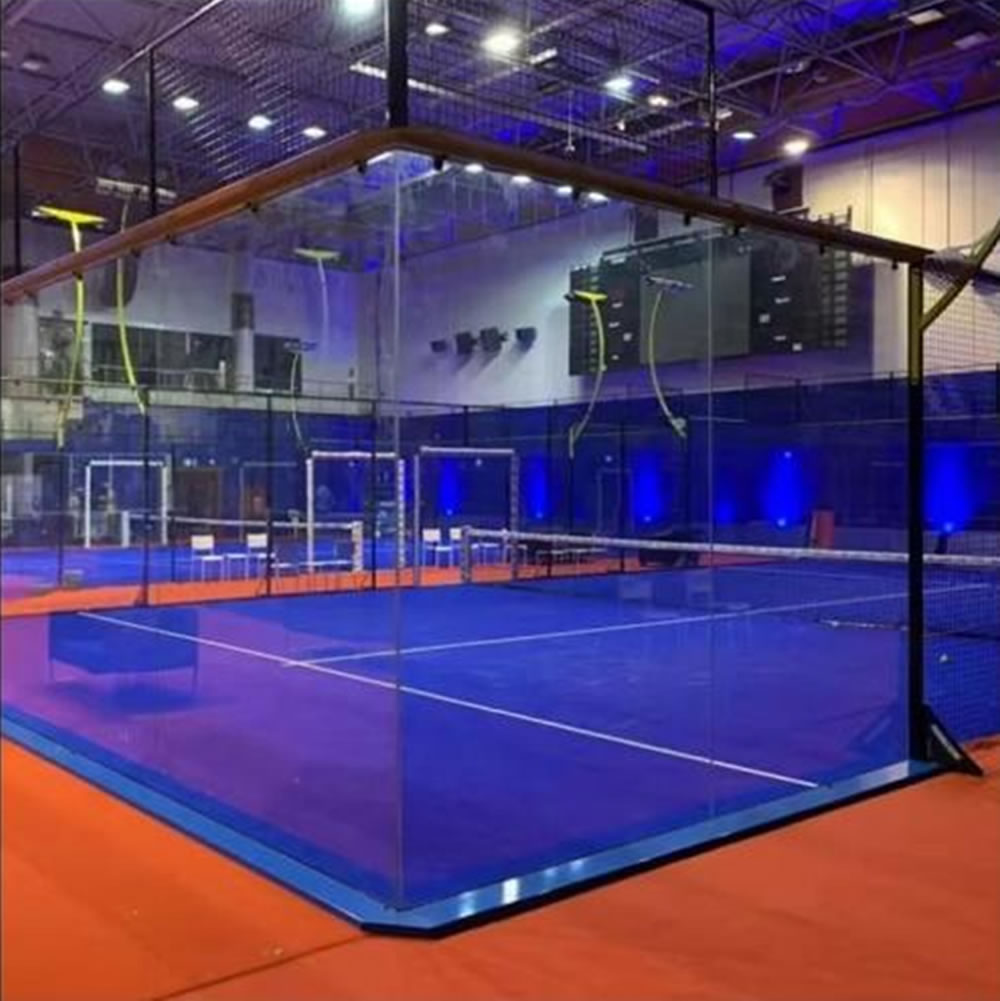

Type 4:Super Panorama

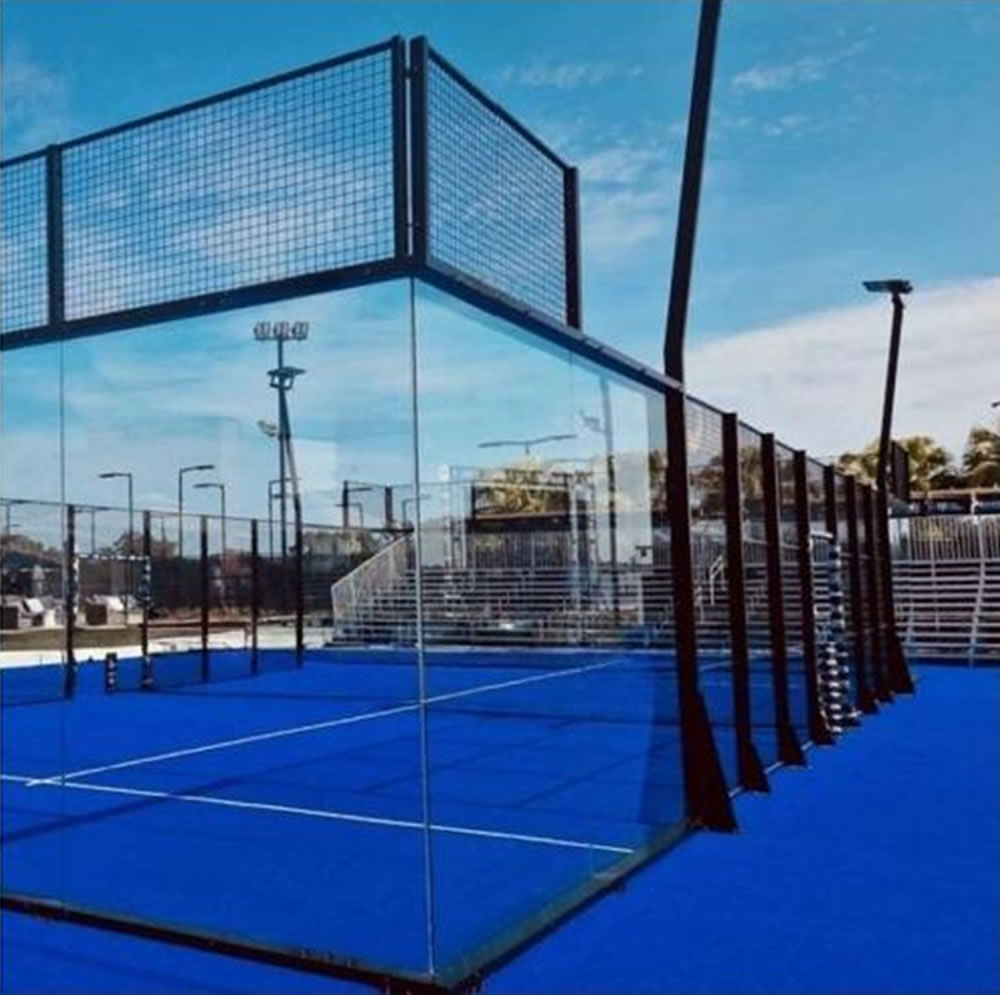

Model:VO-SP2010-01
Model:VO-SP2010-02
Model:VO-SP2010-03

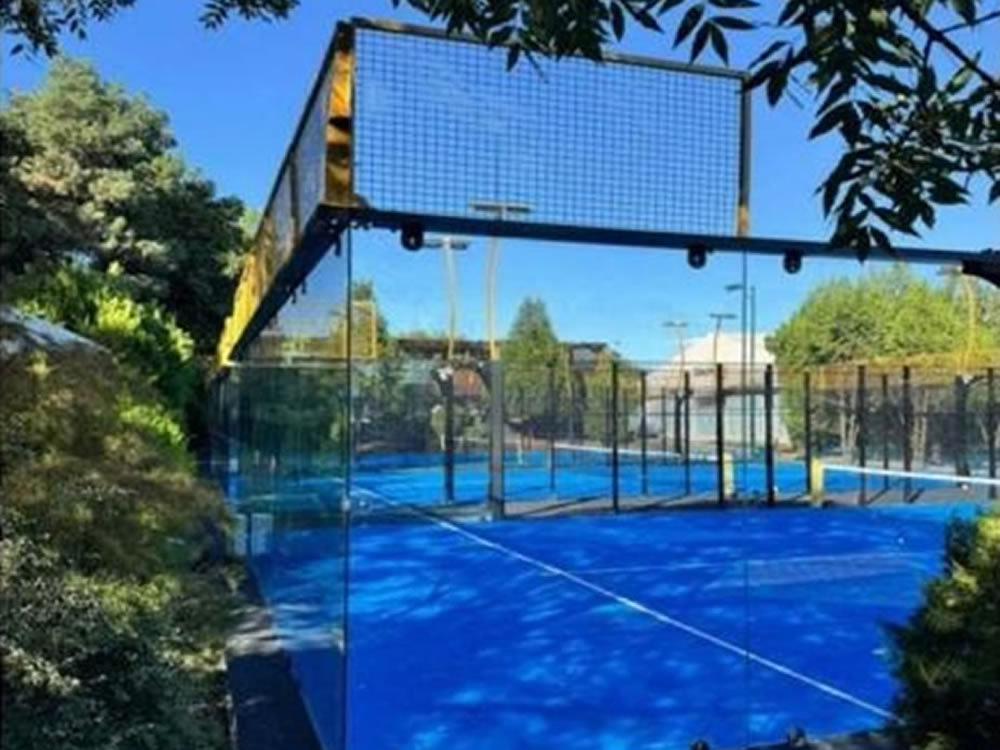

Model:VO-SP2010-04
Size:20 meters×10meters
| Item Category | Specific Name | Specification Parameters |
| Column System | Four-corner Post | Q235 steel, Optional: 150×150×4mm square steel pipe / 100×100×3.0mm fan-shaped steel pipe |
| Other Post | Q235 steel rectangular pipe, Optional: 100×50×3.0mm / 80×40×2.5mm | |
| Supporting Column | Optional: 80×80×3.0mm aluminum alloy square tube / Q235 steel | |
| Beam System | Crossbeam | Rectangular steel tube, Optional: 150×60×2mm / 100×50×2mm |
| Fencing Frame System | Fencing Frame | 50×50×4mm pipe |
| Frame Pipe | Optional: 40×40×1.5mm / 40×20×1.5mm | |
| LED Lighting System | LED Lamps | Quantity: 4 units |
| Single Unit Power | 200W | |
| Input Voltage | AC 110~277V | |
| Light Source | Philips LED chip | |
| Power Supply | Philips matching power supply | |
| Netting Material | Netting | 3mm thick PE woven netting |
| Structural Design | Top Structure | The top 6 sections adopt double-layer design |
| Tempered Glass | Glass Quantity | 18 pieces |
| Glass Thickness | 12mm tempered glass | |
| Artificial Turf | Grass Height | 10mm |
| Needle Density | 46200 needles/㎡ | |
| Dtex | 13500 | |
| Material | PP+PE blend | |
| Warranty | 5 years | |
| Color | Customizable | |
| Surface Treatment | Treatment Plan | Optional: 1. Hot-dip galvanizing + Electrostatic spraying; 2. Bottom spray of zinc-rich primer + Surface powder coating |
| Production & Weight | Monthly Production Capacity | 100 sets |
| Single Set Gross Weight | 6000 kilograms | |
| Origin | Hebei, China |

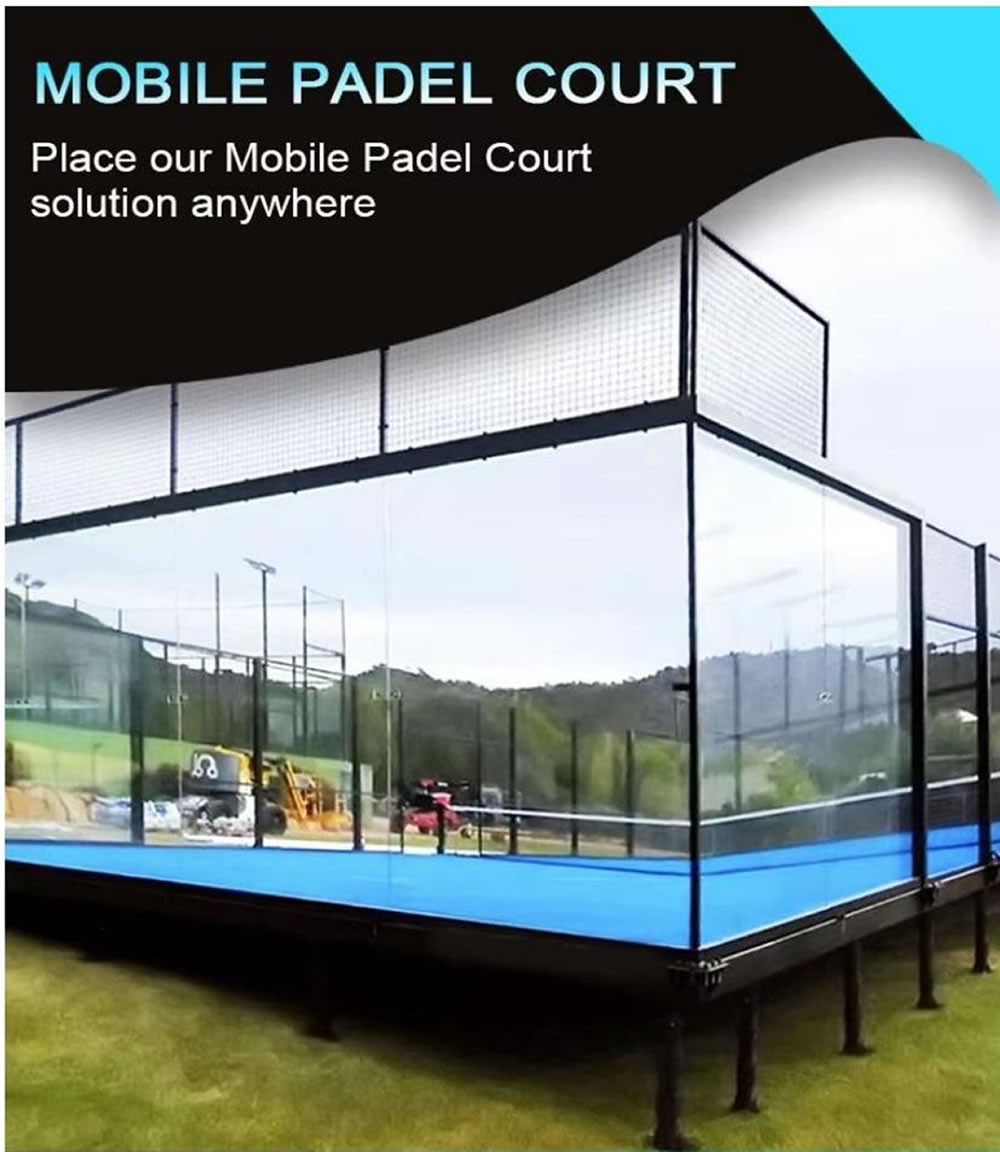

Type5: Mobile court applicable to all types of terrain
Pictures for examples
Padel Court for Clubs, Resorts and Parks
